RX505 FRICTION ENDLESS ROPE DRUM
ROPEFLEX training machines are based on simple, time-proven principles of rope climbing while reducing the risk of this traditionally dangerous activity to nearly zero. Individuals of any age and athletic ability can benefit from our unique rope technology safely and comfortably. ROPEFLEX friction-based equipment is durable, maintenance free and is made 100% in the United States. All parts are painted with polymer-based powder coat for a long-lasting finish. Our high-quality ropes allow a comfortable grip, limiting friction and slipping during the exercise activity.
RX1500 offers a standalone frame for the RX505 and can be selected as a single or dual station for group training. It allows 12 position vertical adjustment of the RX505 head, has minimal footprint and is ADA compliant.
OPTIONAL ADD-ONS
RESISTANCE IS FUTILE
THE ORIGINAL INFINITY DRUM
FRICTION RESISTANCE
Resistance setting is adjusted by looping the rope around 5 equally spaced pins to achieve a wide range of resistance up to 200lbs

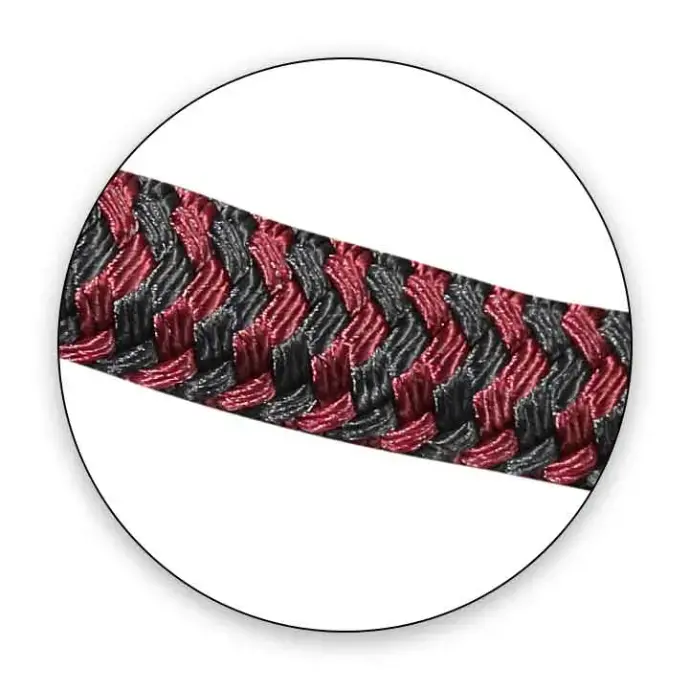

HAND-CRAFTED ROPE
GET A GRIP on our durable and pliable, polyester-weaved rope. Soft on hands and easy-to-clean. Available in black or burgundy-black colors.

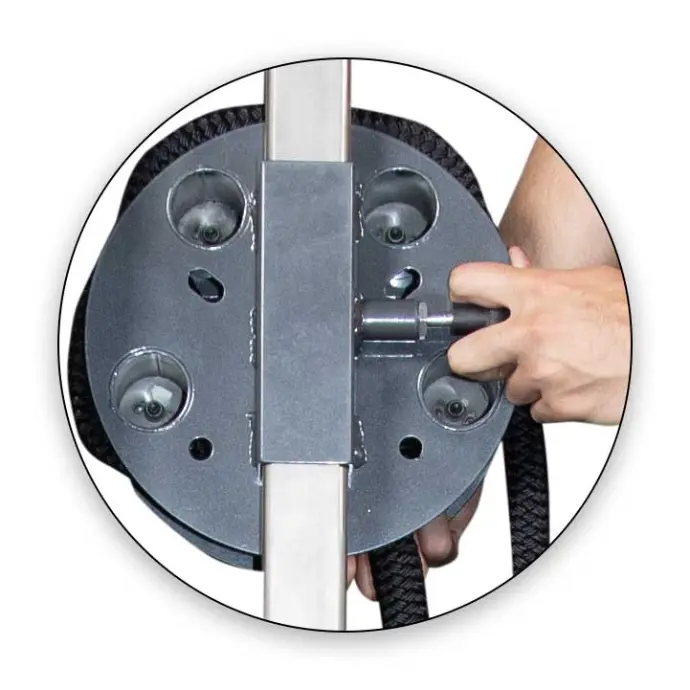

ADJUSTABLE POSITION
Clamp RX505 to a beam with included hardware, or turn it into adjustable position rope drum with optional rail or J-HOOK style adapter

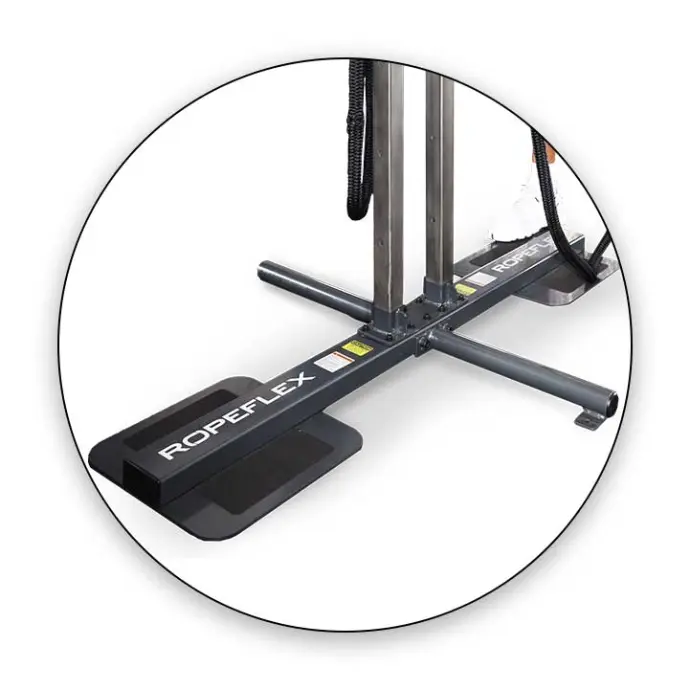

RX1500 FRAME
An adjustable standalone frame for the RX505 with 1 or 2 station configurations and is ADA compliant
Downloads
Specifications
| DIMENSIONS & WEIGHT | |
|---|---|
| LENGTH | 11 inches |
| WIDTH | 8 inches |
| HEIGHT | 11 inches |
| WEIGHT | 18 lb |
| FEATURES | |
|---|---|
| FRAME COLOR | BLACK or GREY or RED or WHITE |
| ROPE COLOR | BLACK or BURGUNDY-BLACK |
| CONSTRUCTION | STEEL or STAINLESS STEEL |
| RESISTANCE | FRICTION 10-200 LB |
| FRAME | 11 Gauge Steel |
| FOR OUTDOOR | Yes |
